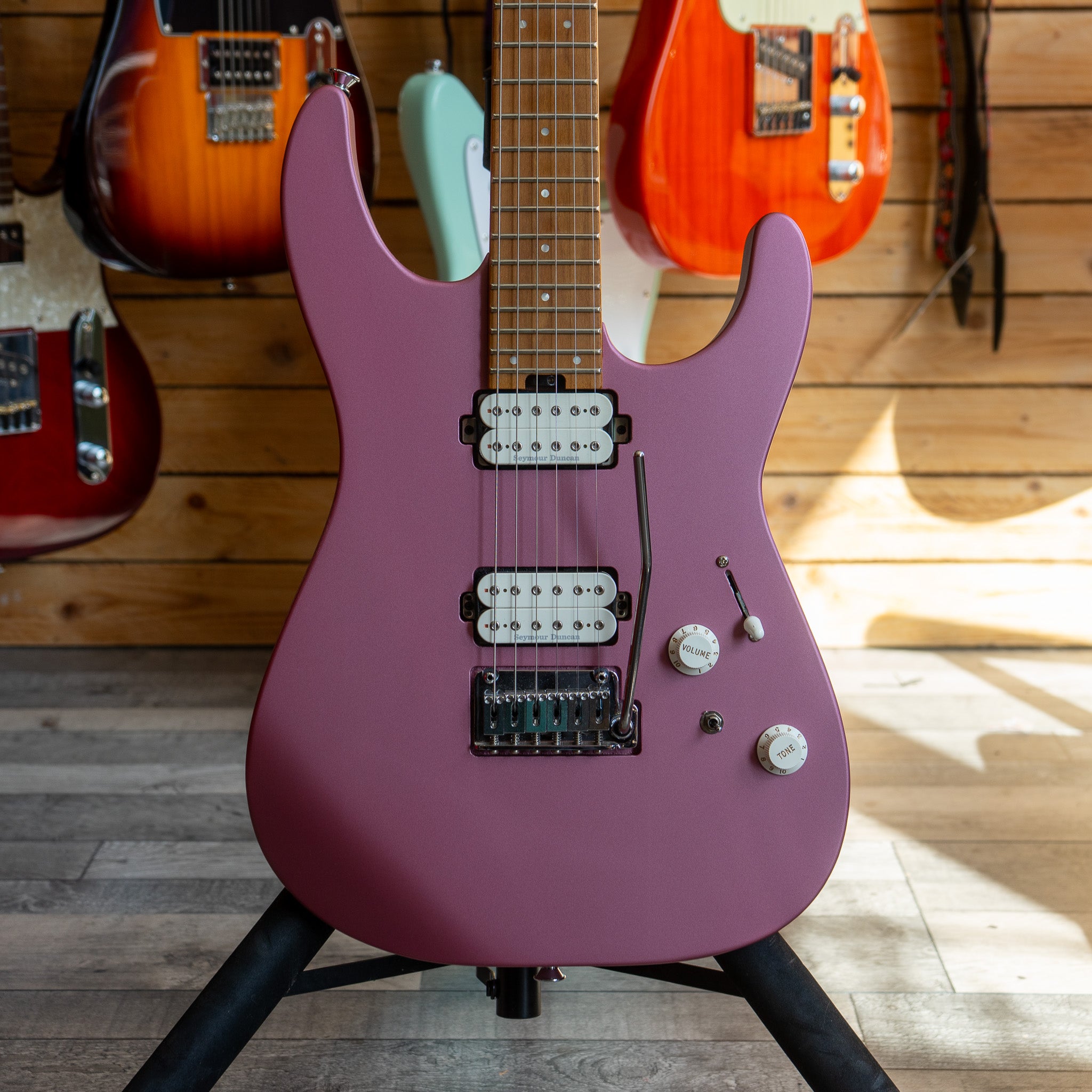

An immaculate example of the Charvel Pro Mod DK24 HH Dinky 2PT Caramelized Maple Satin Burgundy Mist.
Charvel® turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM, a brazen instrument for the progressive guitarist searching for an unparalleled spectrum of sound.
Featuring a sculpted shredder’s cut heel and a scalloped lower back bout for easy upper access to the fretboard, the alder body in the classic DinkyTM style is cloaked in a stage-stealing Satin Burgundy Mist finish.
The bolt-on caramelised maple “speed” neck has graphite reinforcement, silky-smooth hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12”-16” compound radius caramelised maple fretboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.
Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe features an HH pickup configuration consisting of a direct mount Custom Seymour Duncan® Full Shred SH-10B bridge pickup and direct mount Seymour Duncan® Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.
Blending sophisticated style with assertive tone, the DK24 HH 2PT CM also offers premium modern features such as a five-way blade pickup switch, Stratocaster®- style skirt knobs for the volume (with 500K EVH® Bourns® low-friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, locking tuners, chrome hardware and more.
PRODUCT DETAILS
- MODEL NAME: Pro-Mod DK24 HH 2PT CM, Caramelized Maple Fingerboard, Satin Burgundy Mist
- MODEL #: 2969411519
- SERIES: Pro-Mod DK24
- COUNTRY OF ORIGIN: MX
- COLOUR: Satin Burgundy Mist
- BODY: Alder
- BODY FINISH: Satin
- BODY SHAPE: Dinky
- NECK MATERIAL: 2-Piece Caramelized Maple
- NECK FINISH: Hand-Rubbed Satin Urethane
- NECK SHAPE: Speed Neck with Rolled Fingerboard Edges
- SCALE LENGTH: 25.5" (648 mm)
- FINGERBOARD: Caramelized Maple
- FINGERBOARD RADIUS: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- NUMBER OF FRETS: 24
- FRETS SIZE: Jumbo
- STRING NUT: Graph Tech TUSQ
- NUT WIDTH: 1.6875" (42.86 mm)
- POSITION INLAYS: 4mm Pearloid Dot
- BRIDGE PICKUP: Custom Seymour Duncan Full Shred SH-10B
- NECK PICKUP: Seymour Duncan Alnico II Pro APH-1N Humbucking
- CONTROLS: Volume (with 500K EVH® Bourns® Low-Friction Potentiometer), No-Load Tone
- PICKUP SWITCHING: 5-Position Blade & 2-Way Mini Toggle - (Pos 1 - Bridge Pickup, Pos 2 - Both Outer Coils, Pos 3 - Bridge & Neck Pickup, Pos 4 - Both Inside Coils, Pos 5 - Neck Pickup; 2-Way Mini Toggle Down/All Series; 2-Way Mini Toggle Up/All Parallel
- PICKUP CONFIGURATION: HH
- BRIDGE: Gotoh Custom 510 Tremolo Bridge
- HARDWARE FINISH: Chrome
- PICKGUARD: None
- CONTROL KNOBS: Strat Style
- STRINGS: NPS, .009-.042 Gauges
- UNIQUE FEATURES: Luminlay Side Dots
